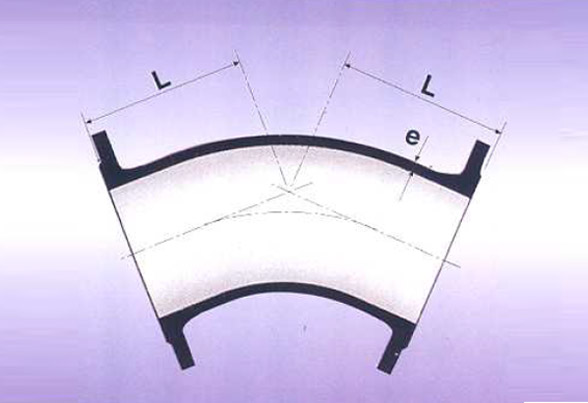

| Nominal Dia | E | L | Weight Each |
| mm | mm | mm | kg |
| 80 | 7.0 | 130 | 10 |
| 100 | 7.2 | 140 | 12 |
| 150 | 7.8 | 160 | 19 |
| 200 | 8.4 | 180 | 28 |
| 250 | 9.0 | 350 | 63 |
| 300 | 9.6 | 400 | 88 |
| 350 | 10.2 | 298 | 88 |
| 400 | 10.8 | 324 | 109 |
| 450 | 11.4 | 350 | 145 |
| 500 | 12.0 | 375 | 161 |
| 600 | 13.2 | 426 | 289 |
| 700 | 14.4 | 478 | 391 |
| 750 | 15.0 | 504 | 386 |
| 800 | 15.6 | 529 | 530 |
| 900 | 16.8 | 581 | 680 |
| 1000 | 18.0 | 632 | 901 |
