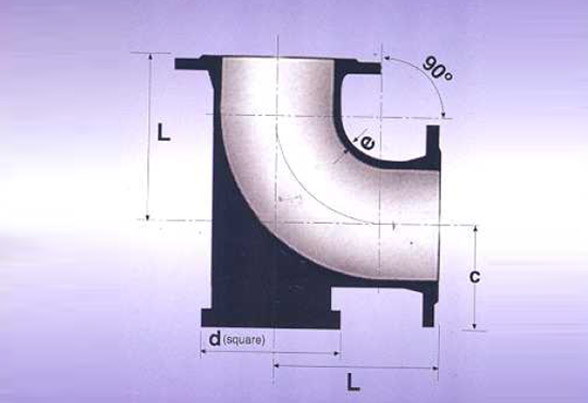

| Nominal Size | E | L | C | D | Weight Each |
| mm | mm | mm | mm | mm | kg |
| 80 | 7.0 | 155 | 110 | 180 | 22 |
| 100 | 7.2 | 175 | 125 | 200 | 19 |
| 150 | 7.8 | 230 | 160 | 250 | 33 |
| 200 | 8.4 | 280 | 190 | 300 | 61 |
| 250 | 9.0 | 335 | 225 | 350 | 89 |
| 300 | 9.6 | 385 | 255 | 400 | 119 |
| 350 | 10.2 | 440 | 290 | 450 | 176 |
| 400 | 10.8 | 495 | 320 | 500 | 242 |
| 450 | 11.4 | 545 | 355 | 550 | 272 |
| 500 | 12.0 | 600 | 385 | 600 | 325 |
| 600 | 13.2 | 705 | 450 | 700 | 493 |
| 700 | 14.4 | 810 | 515 | 800 | 586 |
| 750 | 15.0 | 860 | 550 | 850 | 692 |
| 800 | 15.6 | 915 | 580 | 900 | 798 |
| 900 | 16.8 | 1020 | 645 | 1000 | 1050 |
| 1000 | 18.0 | 1130 | 710 | 1100 | 1380 |
