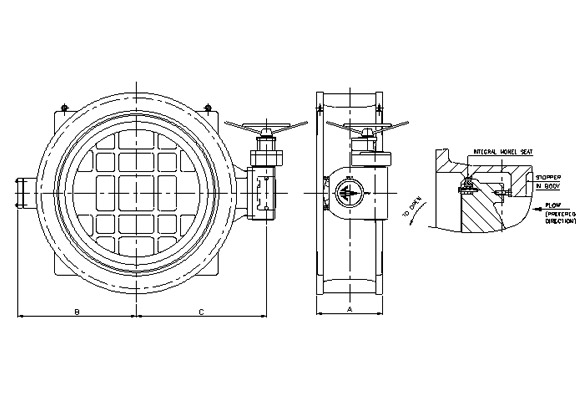

| VALVE SIZE A (mm) | A (mm) | B (mm) | C (mm) |
| 150 | 140 | 142 | 195 |
| 200 | 152 | 215 | 270 |
| 250 | 165 | 280 | 315 |
| 300 | 178 | 265 | 300 |
| 350 | 190 | 300 | 345 |
| 400 | 216 | 330 | 385 |
| 450 | 222 | 370 | 415 |
| 500 | 229 | 395 | 450 |
| 600 | 267 | 480 | 525 |
| 700 | 292 | 530 | 595 |
| 750 | 301 | 560 | 605 |
| 800 | 318 | 625 | 680 |
| 900 | 330 | 690 | 740 |
| 1000 | 410 | 705 | 775 |
| 1100 | 440 | 800 | 875 |
| 1200 | 470 | 830 | 900 |
| 1400 | 530 | 1000 | 1070 |
| 1500 | 560 | 1135 | 1220 |
| 1600 | 600 | 1135 | 1220 |
| 1800 | 670 | 1285 | 1380 |
| 2000 | 760 | 1380 | 1500 |
| 2200 | 770 | 1490 | 1610 |
| 2400 | 770 | 1610 | 1745 |
| 2500 | 780 | 1665 | 1835 |
| 2800 | 780 | 1900 | 2050 |
| 3000 | 810 | 2050 | 2200 |
