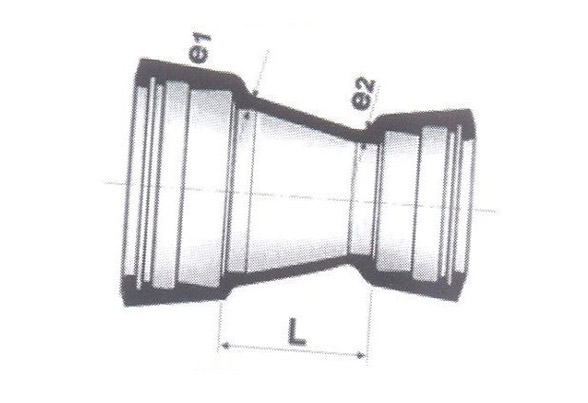

| DN Body | DN Branch | e1 | e2 | L | Weight Each |
| mm | mm | mm | mm | mm | kg |
| 100 | 80 | 7.2 | 7.0 | 90 | 8 |
| 150 | 80 | 7.8 | 7.0 | 190 | 11 |
| 150 | 100 | 7.8 | 7.2 | 150 | 11 |
| 200 | 100 | 8.4 | 7.2 | 150 | 21 |
| 200 | 150 | 8.4 | 7.8 | 150 | 18 |
| 250 | 150 | 9.0 | 7.8 | 250 | 26 |
| 250 | 200 | 9.0 | 8.4 | 150 | 27 |
| 300 | 150 | 9.6 | 7.8 | 350 | 38 |
| 300 | 200 | 9.6 | 8.4 | 250 | 37 |
| 300 | 250 | 9.6 | 9.0 | 150 | 34 |
| 350 | 200 | 10.2 | 8.4 | 360 | 48 |
| 350 | 250 | 10.2 | 9.0 | 260 | 45 |
| 350 | 300 | 10.2 | 9.6 | 160 | 43 |
| 400 | 250 | 10.8 | 9.0 | 360 | 60 |
| 400 | 300 | 10.8 | 9.6 | 260 | 57 |
| 400 | 350 | 10.8 | 10.2 | 160 | 49 |
| 450 | 350 | 11.4 | 10.2 | 260 | 66 |
| 450 | 400 | 11.4 | 10.8 | 169 | 62 |
| 500 | 350 | 12.0 | 10.2 | 360 | 87 |
| 500 | 400 | 12.0 | 10.8 | 260 | 87 |
| 600 | 400 | 13.2 | 10.8 | 460 | 134 |
| 600 | 500 | 13.2 | 12.0 | 260 | 121 |
| 700 | 500 | 14.4 | 12.0 | 480 | 199 |
| 700 | 600 | 14.4 | 13.2 | 280 | 164 |
| 800 | 600 | 15.6 | 13.2 | 480 | 251 |
| 800 | 700 | 15.6 | 14.4 | 280 | 229 |
| 900 | 700 | 16.8 | 14.4 | 480 | 318 |
| 900 | 800 | 16.8 | 15.6 | 280 | 315 |
| 1000 | 800 | 18.0 | 15.6 | 480 | 411 |
| 1000 | 900 | 18.0 | 16.8 | 280 | 370 |
