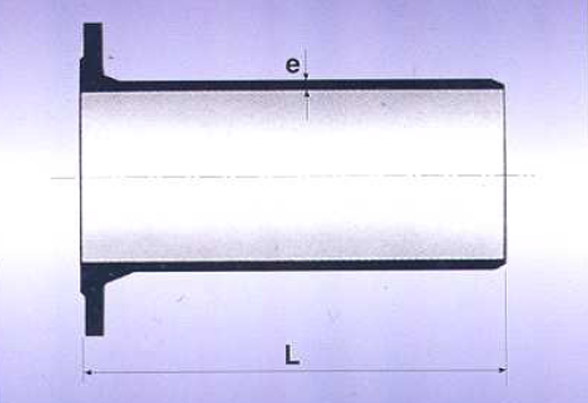

| Nominal Dia | DE | E | L | Weight Each |
| mm | mm | mm | mm | kg |
| 80 | 98 | 7.0 | 350 | 8 |
| 100 | 118 | 7.2 | 360 | 11 |
| 150 | 170 | 7.8 | 380 | 17 |
| 200 | 222 | 8.4 | 400 | 26 |
| 250 | 274 | 9.0 | 420 | 36 |
| 300 | 326 | 9.6 | 440 | 48 |
| 400 | 429 | 10.8 | 480 | 70 |
| 450 | 480 | 11.4 | 500 | 82 |
| 500 | 532 | 12.0 | 520 | 117 |
| 600 | 635 | 13.2 | 560 | 159 |
| 700 | 738 | 14.4 | 600 | 243 |
| 750 | 790 | 15.0 | 600 | 283 |
| 800 | 842 | 15.6 | 600 | 283 |
| 900 | 945 | 16.8 | 600 | 362 |
| 1000 | 1048 | 18.0 | 600 | 425 |
