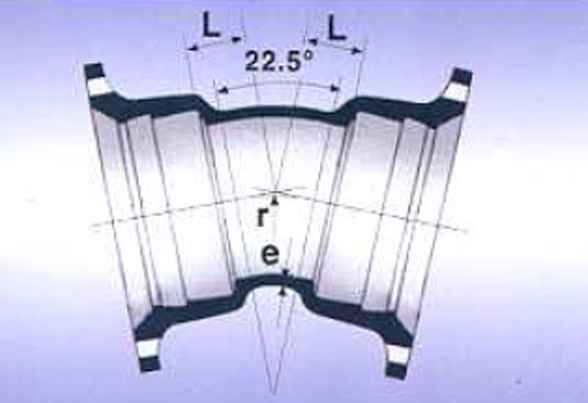

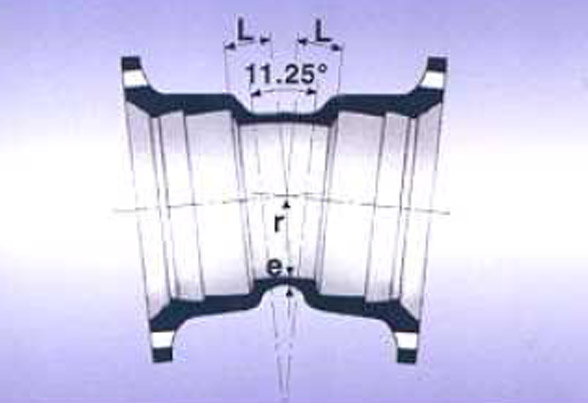

| Nominal Dia Dn | 22.5° Bend | 11.25° Bend | ||||
L |
r (approx) |
Weight each |
L |
r (approx) |
Weight each |
|
mm |
mm |
kg |
mm |
mm |
kg |
|
100 |
45 |
110 |
20 |
35 |
120 |
19 |
150 |
55 |
155 |
32 |
40 |
155 |
32 |
200 |
65 |
195 |
43 |
45 |
195 |
41 |
250 |
75 |
240 |
58 |
50 |
230 |
55 |
300 |
90 |
305 |
77 |
60 |
315 |
73 |
350 |
100 |
350 |
91 |
65 |
350 |
101 |
400 |
110 |
390 |
129 |
70 |
385 |
116 |
450 |
120 |
435 |
155 |
75 |
420 |
145 |
500 |
135 |
505 |
175 |
85 |
510 |
168 |
600 |
155 |
590 |
226 |
95 |
580 |
205 |
